MQTT LAB PT1

Team

Yahir Gil Mendoza

Isaac Aleman

Pablo Eduardo López Manzano

1) Activity Goals

• Interface a potentiometer with the ESP32-C6 ADC (Analog-to-Digital Converter) to capture manual control inputs.

*Develop a non-blocking execution loop to ensure simultaneous sensor reading and MQTT message handling.

• Generate a precise PWM (Pulse Width Modulation) signal to regulate the motor speed through a dedicated driver.

*Establish a secure and stable connection between the ESP32-C6 and an MQTT broker Mouitto via Wi-Fi 6.

• English: Publish real-time motor speed telemetry to a specific topic for remote monitoring.

Materials

• ESP32 C6
• Cable for data
• Protoboard
• jumpers
• H bridge
• Motor DC

Analysis

Code 1

• The code has peripheral configuration the code utilizes the LEDC peripheral of the ESP32-C6 to generate a high-frequency PWM signal, ensuring smooth motor rotation without audible noise.

After the data resolution and mapping since the ESP32-C6 features a 12-bit ADC, the input signal is processed through a mapping function to match the 8-bit resolution of the PWM output ``

include

include

include

include "freertos/FreeRTOS.h"

include "freertos/task.h"

include "freertos/event_groups.h"

include "esp_system.h"

include "esp_wifi.h"

include "esp_event.h"

include "esp_log.h"

include "esp_netif.h"

include "nvs_flash.h"

include "mqtt_client.h"

include "driver/ledc.h"

include "driver/gpio.h"

include "esp_adc/adc_oneshot.h"

define WIFI_SSID "iPhone"

define WIFI_PASS "12345678"

define TEAM_ID "Teampapu"

define DEVICE_ID "c6_01"

define TOPIC_CMD "ibero/ei2/" TEAM_ID "/" DEVICE_ID "/cmd"

define TOPIC_TLM "ibero/ei2/" TEAM_ID "/" DEVICE_ID "/telemetry"

define TOPIC_STAT "ibero/ei2/" TEAM_ID "/" DEVICE_ID "/status"

// CORRECCIÓN 1: Nombres consistentes y emparejados con tu MQTT Explorer

define TOPIC_MOTOR "ibero/ei2/motor"

define TOPIC_SPEED "ibero/ei2/speed"

define ENA_GPIO 4

define IN1_GPIO 18

define IN2_GPIO 19

define TEMP_ADC_CHANNEL ADC_CHANNEL_0

define HUM_ADC_CHANNEL ADC_CHANNEL_1

static EventGroupHandle_t wifi_event_group;

define WIFI_CONNECTED_BIT BIT0

static const char *TAG = "IBERO_MQTT";

static esp_mqtt_client_handle_t client = NULL;

static int current_speed = 0; static int motor_state = 0;

static void wifi_event_handler(void arg, esp_event_base_t event_base, int32_t event_id, void event_data) { if (event_base == WIFI_EVENT && event_id == WIFI_EVENT_STA_START) esp_wifi_connect(); else if (event_base == WIFI_EVENT && event_id == WIFI_EVENT_STA_DISCONNECTED) esp_wifi_connect(); else if (event_base == IP_EVENT && event_id == IP_EVENT_STA_GOT_IP) xEventGroupSetBits(wifi_event_group, WIFI_CONNECTED_BIT); }

void wifi_init_sta(void) { wifi_event_group = xEventGroupCreate();

esp_netif_init();
esp_event_loop_create_default();
esp_netif_create_default_wifi_sta();

wifi_init_config_t cfg = WIFI_INIT_CONFIG_DEFAULT();
esp_wifi_init(&cfg);

esp_event_handler_instance_register(WIFI_EVENT,
                                    ESP_EVENT_ANY_ID,
                                    &wifi_event_handler,
                                    NULL,
                                    NULL);

esp_event_handler_instance_register(IP_EVENT,
                                    IP_EVENT_STA_GOT_IP,
                                    &wifi_event_handler,
                                    NULL,
                                    NULL);

wifi_config_t wifi_config = {
    .sta = {
        .ssid = WIFI_SSID,
        .password = WIFI_PASS
    }
};

esp_wifi_set_mode(WIFI_MODE_STA);
esp_wifi_set_config(WIFI_IF_STA, &wifi_config);
esp_wifi_start();

xEventGroupWaitBits(wifi_event_group,
                    WIFI_CONNECTED_BIT,
                    pdFALSE,
                    pdFALSE,
                    portMAX_DELAY);

}

static void motor_init() { gpio_set_direction(IN1_GPIO, GPIO_MODE_OUTPUT); gpio_set_direction(IN2_GPIO, GPIO_MODE_OUTPUT);

ledc_timer_config_t timer = {
    .speed_mode = LEDC_LOW_SPEED_MODE,
    .timer_num = LEDC_TIMER_0,
    .duty_resolution = LEDC_TIMER_8_BIT,
    .freq_hz = 5000,
    .clk_cfg = LEDC_AUTO_CLK
};

ledc_timer_config(&timer);

ledc_channel_config_t channel = {
    .gpio_num = ENA_GPIO,
    .speed_mode = LEDC_LOW_SPEED_MODE,
    .channel = LEDC_CHANNEL_0,
    .timer_sel = LEDC_TIMER_0,
    .duty = 0
};

ledc_channel_config(&channel);

}

static void set_motor_speed(int speed) { ledc_set_duty(LEDC_LOW_SPEED_MODE, LEDC_CHANNEL_0, speed); ledc_update_duty(LEDC_LOW_SPEED_MODE, LEDC_CHANNEL_0); }

static void motor_forward() { gpio_set_level(IN1_GPIO, 1); gpio_set_level(IN2_GPIO, 0); }

static void motor_stop() { gpio_set_level(IN1_GPIO, 0); gpio_set_level(IN2_GPIO, 0); set_motor_speed(0); }

static void sensor_task(void *pv) { adc_oneshot_unit_handle_t adc_handle;

adc_oneshot_unit_init_cfg_t init_config = {
    .unit_id = ADC_UNIT_1,
};

adc_oneshot_new_unit(&init_config, &adc_handle);

adc_oneshot_chan_cfg_t config = {
    .bitwidth = ADC_BITWIDTH_DEFAULT,
    .atten = ADC_ATTEN_DB_12,
};

adc_oneshot_config_channel(adc_handle, TEMP_ADC_CHANNEL, &config);
adc_oneshot_config_channel(adc_handle, HUM_ADC_CHANNEL, &config);

int last_temp = -100;
int last_hum = -100;

while (1)
{
    int raw_temp;
    int raw_hum;

    adc_oneshot_read(adc_handle, TEMP_ADC_CHANNEL, &raw_temp);
    adc_oneshot_read(adc_handle, HUM_ADC_CHANNEL, &raw_hum);

    int temperature = (raw_temp * 50) / 4095;
    int humidity = (raw_hum * 100) / 4095;

    if (abs(temperature - last_temp) >= 3 || abs(humidity - last_hum) >= 3)
    {
        printf("Temperatura: %d °C\n", temperature);
        printf("Humedad: %d %%\n", humidity);

        char msg[64];
        sprintf(msg, "temp:%d,hum:%d", temperature, humidity);

        if (client != NULL)
            esp_mqtt_client_publish(client, TOPIC_TLM, msg, 0, 1, 0);

        last_temp = temperature;
        last_hum = humidity;
    }

    vTaskDelay(pdMS_TO_TICKS(300));
}

}

static void mqtt_event_handler(void handler_args, esp_event_base_t base, int32_t event_id, void event_data) { esp_mqtt_event_handle_t event = event_data;

switch (event->event_id)
{

case MQTT_EVENT_CONNECTED:

    printf("MQTT Conectado\n");

    esp_mqtt_client_subscribe(client, TOPIC_CMD, 1);
    esp_mqtt_client_subscribe(client, TOPIC_MOTOR, 1);
    esp_mqtt_client_subscribe(client, TOPIC_SPEED, 1);

    esp_mqtt_client_publish(client, TOPIC_STAT, "online", 0, 1, 0);

    break;

case MQTT_EVENT_DATA:

    printf("Topic=%.*s Data=%.*s\n",
           event->topic_len, event->topic,
           event->data_len, event->data);

    if (strncmp(event->topic, TOPIC_MOTOR, event->topic_len) == 0)
    {
        if (strncmp(event->data, "ON", event->data_len) == 0 || strncmp(event->data, "on", event->data_len) == 0)
        {
            motor_state = 1;
            motor_forward();
            set_motor_speed(current_speed);
        }
        else if (strncmp(event->data, "OFF", event->data_len) == 0 || strncmp(event->data, "off", event->data_len) == 0)
        {
            motor_state = 0;
            motor_stop();
        }
    }

    if (strncmp(event->topic, TOPIC_SPEED, event->topic_len) == 0)
    {
        int speed = atoi(event->data);

        if (speed >= 0 && speed <= 255)
        {
            current_speed = speed;

            if (motor_state)
                set_motor_speed(speed);
        }
    }

    break;

case MQTT_EVENT_DISCONNECTED:

    printf("MQTT Desconectado\n");

    break;

default:
    break;
}

}

void mqtt_app_start(const char *broker_uri) { motor_init();

xTaskCreate(sensor_task, "sensor_task", 4096, NULL, 5, NULL);

esp_mqtt_client_config_t cfg = {
    .broker.address.uri = broker_uri,
    .session.keepalive = 30
};

client = esp_mqtt_client_init(&cfg);

esp_mqtt_client_register_event(client,
                               ESP_EVENT_ANY_ID,
                               mqtt_event_handler,
                               NULL);

esp_mqtt_client_start(client);

}

void app_main(void) { nvs_flash_init(); wifi_init_sta(); mqtt_app_start("mqtt://test.mosquitto.org:1883"); } ``

• The speed value is converted from an integer to a string using dtostrf() before being published to the MQTT broker to allow real-time dashboard visualization.

Results

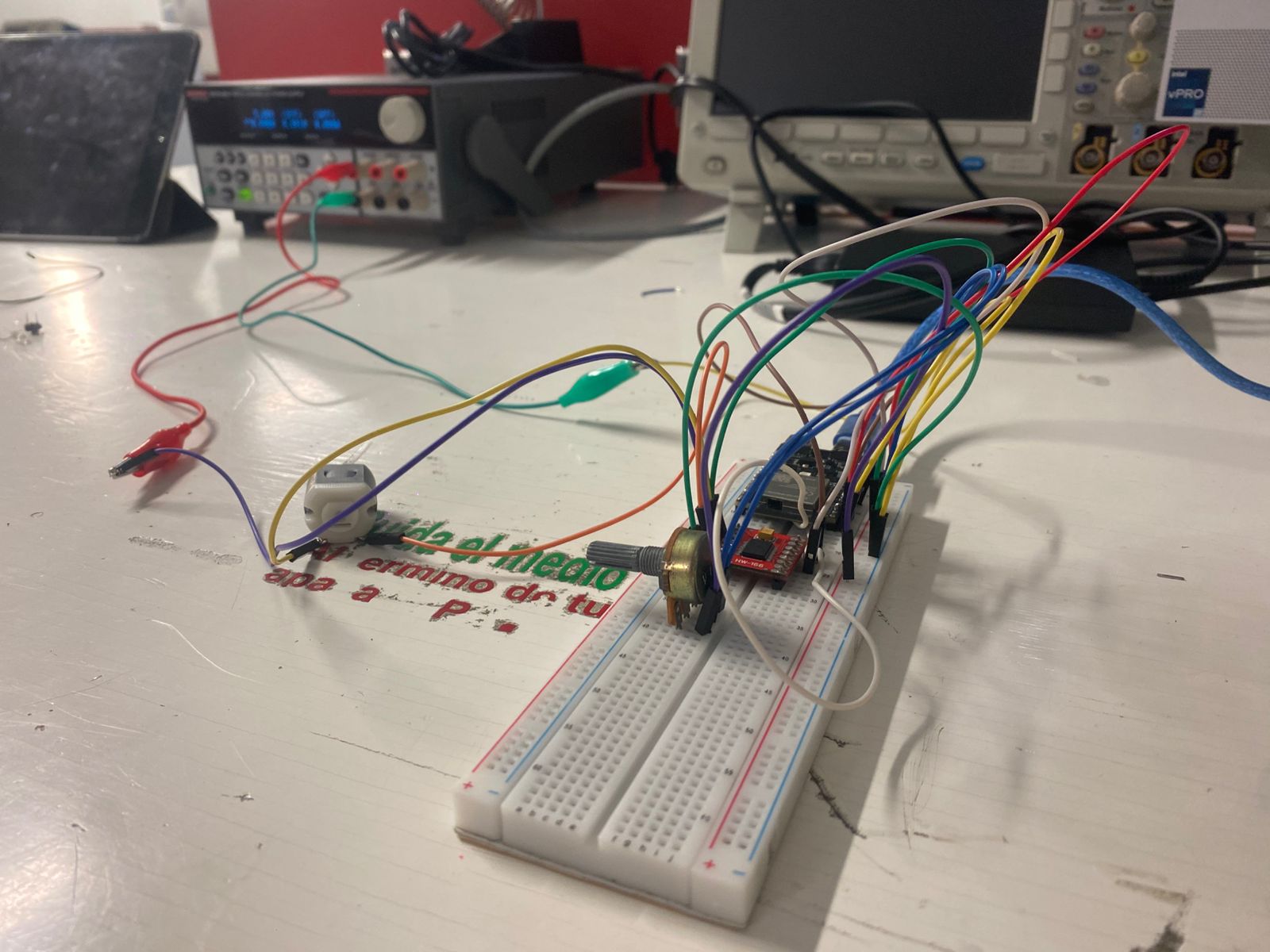

• First we have the next circuit

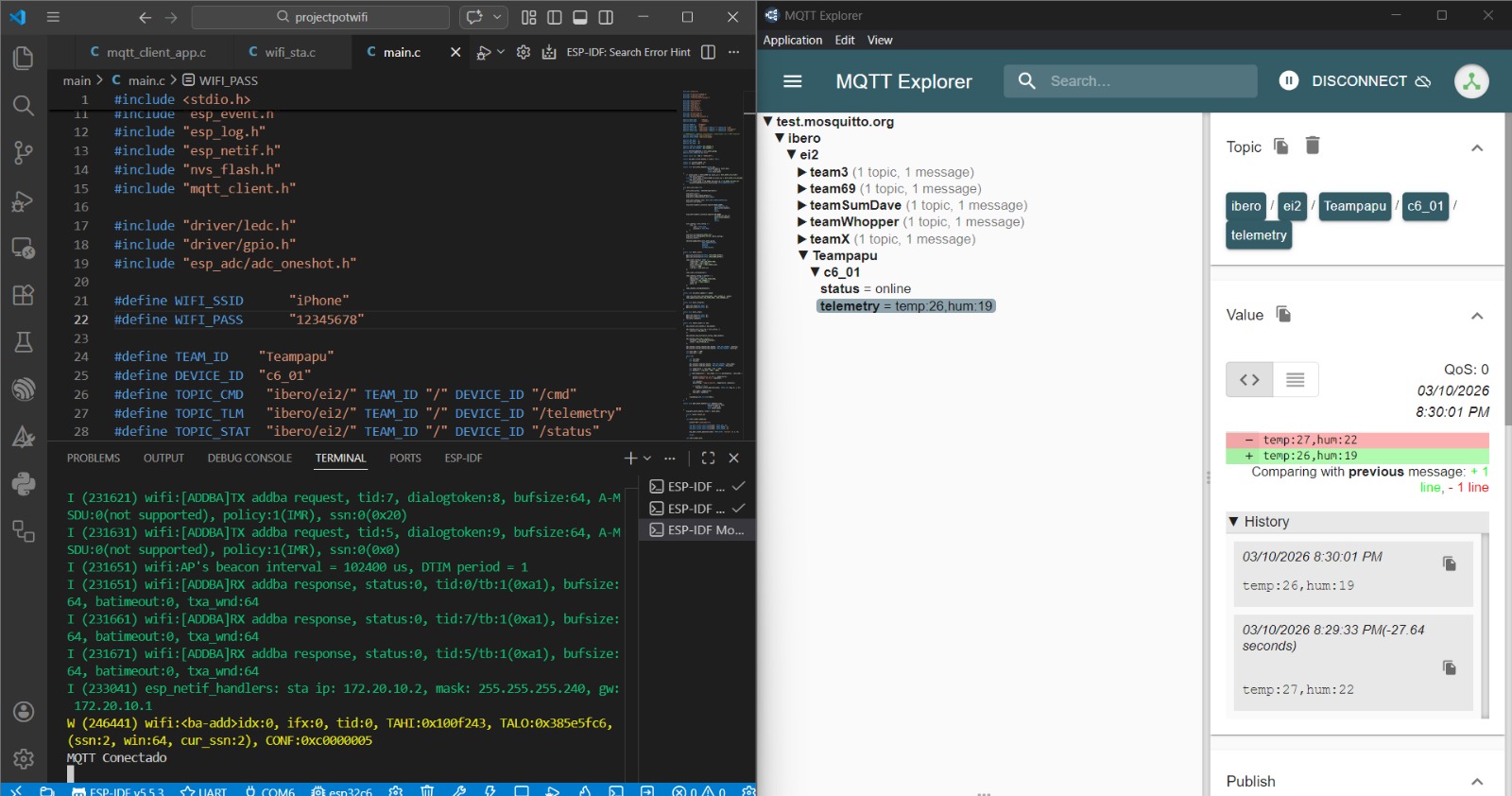

• Our code runs and the page for MQTT

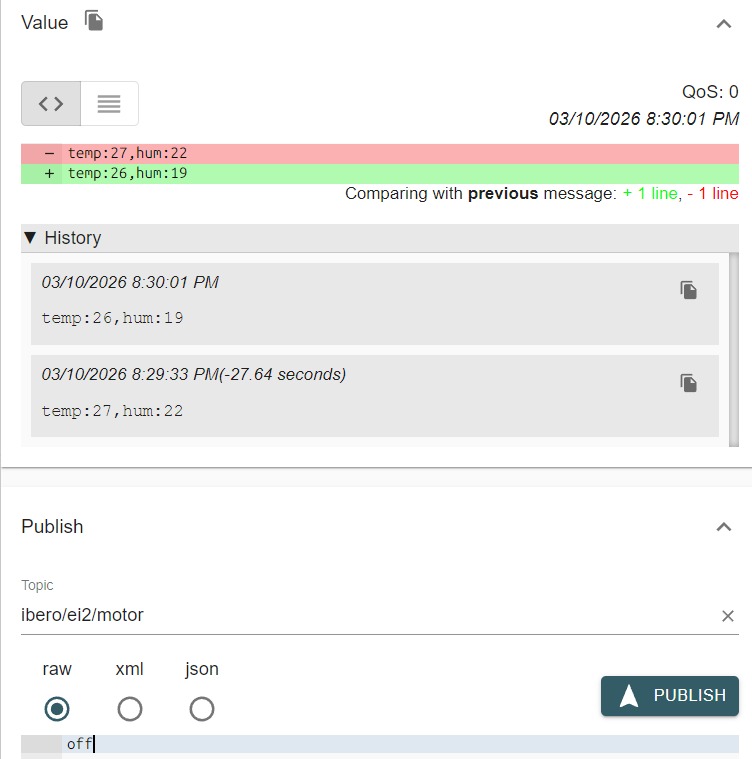

• Mqtt runs

Video

MQTT
